JL075A Aruba 3810 Switch 16SFP+ 2-slot Switch Comes With A Replaceable Fan Tray

Brand Name : Aruba

Model Number : JL075A

Certification : CE

Place of Origin : CHINA

name : JL075A

model : HPE JL075A - Aruba 3810 Switch

Connector type : LC/PC

Warrranty : 1 year

shipping : DHL&FeDex

Software and Hardware Attributes : Hardware

Throughput : Up to 285.7 Mp/s (64-byte packets)

Type : Aruba 3810M 16SFP+ 2-slot Switch

Dimensions (H x W x D) : 4.39 x 44.25 x 43.13 cm (1.73 x 17.42 x 16.98 in) (1U height)

Contact Now

JL075A Overview

Aruba 3810 Switch Series provides performance and resiliency for enterprises, SMBs, and branch office networks. This JL075A has 16 x 1000/10000 SFP+ ports together with 2 x open module slots and a stacking module slot. It comes with a replaceable fan tray. It supports one or two power supplies. Power supplies are ordered separately. Available modules are: 4 x SFP+; 1 x 40GbE QSFP+; 2 x 40GbE QSFP+; 4 port stacking module.

Quick Spec

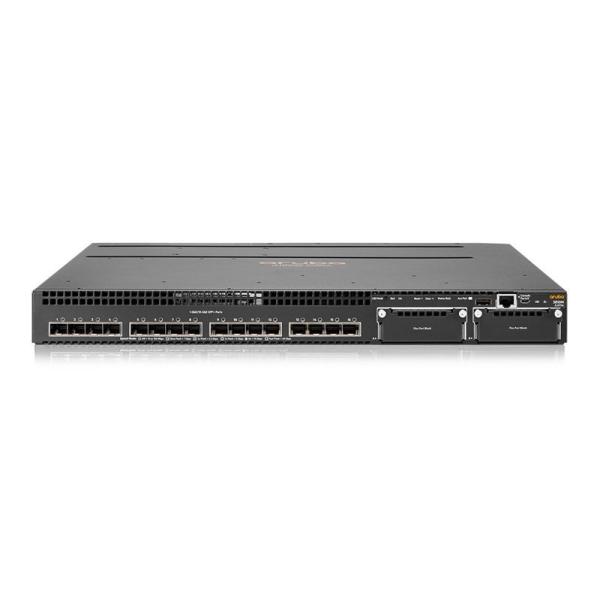

Figure 1 shows the appearance of Aruba JL075A.

JL075A Aruba 3810 Switch 16SFP+ 2-slot Switch Comes With A Replaceable Fan Tray

Table 1 shows the quick spec.

Product Code JL075A
Type Aruba 3810M 16SFP+ 2-slot Switch
I/O ports and slots 16 SFP+ fixed 1000/10000 SFP+ ports;
Duplex: 100BASE-TX: half or full; 1000BASE-T: full only; Ports 1 - 16 support MACSec
2 open module slots

Supports a maximum of 8 SFP+ ports or 2 40GbE ports, with optional module

Additional ports and slots 1 stacking module slot
1 RJ-45 serial console port
1 RJ-45 out-of-band management port
1 dual-personality (RJ-45 or USB micro-B)
Power supplies 2 power supply slots
1 minimum power supply required (ordered separately)
Throughput: Up to 285.7 Mp/s (64-byte packets)
Dimensions (H x W x D) 4.39 x 44.25 x 43.13 cm (1.73 x 17.42 x 16.98 in) (1U height)
JL075A Aruba 3810 Switch 16SFP+ 2-slot Switch Comes With A Replaceable Fan Tray
JL075A Aruba 3810 Switch 16SFP+ 2-slot Switch Comes With A Replaceable Fan Tray
